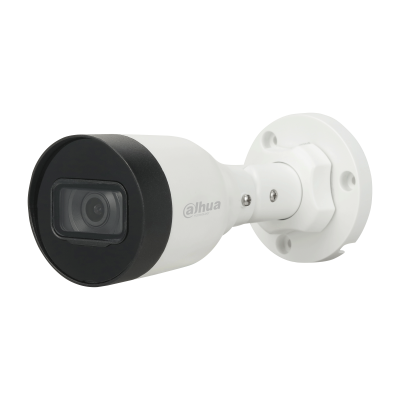

DAHUA DH-IPC-HFW1230S1-S5 – 2MP IR Network Bullet Camera
Key Features:
2MP Full HD Resolution: The DAHUA DH-IPC-HFW1230S1-S5 provides 2MP (1920 x 1080) resolution for clear and detailed video footage, perfect for general surveillance needs where high-definition images are essential for identifying individuals, vehicles, or objects.
Infrared (IR) Night Vision: Equipped with IR LEDs, this camera provides up to 30 meters (98 feet) of night vision, ensuring clear visibility even in total darkness. The IR technology automatically adjusts for optimal image quality during low-light conditions.
Wide Dynamic Range (WDR): With 120 dB WDR, the camera handles challenging lighting situations, such as scenes with both bright and dark areas, producing well-balanced images. It ensures clear details are visible in high-contrast environments without overexposure or underexposure.
Advanced Compression: The camera supports H.265+/H.265/H.264+/H.264 video compression formats, offering efficient use of bandwidth and storage, especially in environments with high video traffic. This helps reduce storage costs and optimize network performance.
ONVIF Compatibility: ONVIF-compliant, allowing seamless integration with a variety of third-party video management systems (VMS) and network video recorders (NVR). This provides flexibility in system setup and easy scalability.
PoE (Power over Ethernet): Supports PoE (IEEE 802.3af), simplifying installation by providing both power and data over a single Ethernet cable, reducing cable clutter and installation costs.
Weatherproof Design: Rated IP67, the camera is weatherproof and can withstand harsh environmental conditions, including rain, dust, and temperature extremes. This makes it ideal for both indoor and outdoor use.
Vandal-Proof: The camera is designed with an IK10 rating, providing protection against tampering and physical damage, making it suitable for installations in high-risk locations.
Specifications:
Resolution: 2MP (1920 x 1080), providing sharp and clear video quality.
Lens: 3.6mm fixed lens, offering a wide viewing angle of around 90 degrees.
IR Range: Up to 30 meters (98 feet) for excellent night-time surveillance.
Wide Dynamic Range (WDR): 120 dB WDR for superior image quality in both bright and dark areas.
Compression: H.265+/H.265/H.264+/H.264, offering efficient compression for video storage and transmission.
Audio: Optional two-way audio (requires external microphone and speaker).
Power Supply: 12V DC or PoE (IEEE 802.3af), simplifying installation.
Weatherproof Rating: IP67, ensuring protection from dust and water for outdoor applications.
Vandal-Proof Rating: IK10, protecting against physical damage and tampering.
Operating Temperature: -30°C to +60°C (-22°F to +140°F), suitable for diverse climates.
Dimensions: 198.6 mm x 72.8 mm x 72.8 mm (7.82 x 2.87 x 2.87 inches).
Weight: 0.38 kg (0.84 lbs).
Applications:
Residential Surveillance: The 2MP resolution provides clear images for monitoring homes, driveways, gardens, and entry points. With IR night vision, it ensures consistent monitoring even at night.
Commercial Security: Ideal for small to medium-sized businesses, including storefronts, offices, and parking areas. The 30-meter IR range and 120 dB WDR are particularly helpful in varying light conditions.
Retail and Public Areas: Suitable for surveillance in retail shops, public spaces, or malls, where clear identification of people or items is crucial for security.
Outdoor Environments: With its IP67 weatherproof and IK10 vandal-proof rating, this camera is built to withstand harsh weather conditions and tampering attempts, making it perfect for outdoor surveillance in high-risk areas.
