DAHUA DH-IPC-HDBW 2431RP-2AS

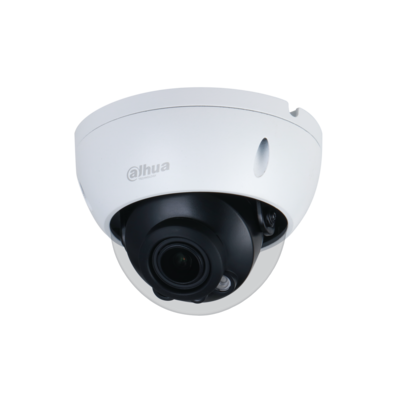

The DAHUA DH-IPC-HDBW2431RP-2AS is a 2MP IP dome camera designed to deliver high-quality video surveillance with enhanced features for both indoor and outdoor applications. This camera offers a robust and reliable solution for security systems, offering advanced technologies like starlight imaging, smart IR, and high-definition video recording.

Key Features

1. High-Definition Video Quality
   • Offers 2MP (1080p) resolution for clear, high-definition video, providing crisp and detailed images for better identification of individuals and objects.
2. Starlight Technology
   • Equipped with Starlight Technology, the camera provides excellent low-light performance, allowing it to deliver color images even in extremely low-light conditions, making it ideal for 24/7 surveillance.
3. Smart IR
   • Features Smart IR technology with a range of up to 30 meters (98 feet), ensuring clear images in low-light environments and adjusting the IR illumination based on the scene to avoid overexposure.
4. Wide Dynamic Range (WDR)
   • Built with 120dB WDR, it enhances the camera’s ability to capture clear images in environments with challenging lighting, such as backlighting or extreme contrast between light and dark areas.
5. Motorized Lens (Varifocal)
   • The camera is equipped with a motorized 2.7mm–13.5mm lens, allowing remote zoom and focus adjustments for easy installation and flexible surveillance coverage.
6. Intelligent Video Analytics
   • Includes advanced motion detection, tripwire, and intrusion detection features, which help in intelligent video management by providing automated alerts and reducing manual monitoring.
7. Built-In Microphone
   • Features audio input, enabling two-way audio for real-time communication, enhancing the camera’s functionality in monitoring applications that require interaction.
8. ONVIF Compatibility
   • Fully compatible with ONVIF, ensuring easy integration with a wide range of third-party NVRs, VMS platforms, and other network equipment.
9. IP67 Rated
   • With an IP67 weatherproof rating, the camera is resistant to harsh weather conditions, making it ideal for outdoor use in rain, dust, and extreme temperatures.
10. Power over Ethernet (PoE)
    • Supports PoE (IEEE 802.3af), enabling easy installation with a single Ethernet cable for both power and data transmission, reducing the need for additional power adapters.

Specifications at a Glance

• Resolution: 2MP (1080p)
• Sensor: 1/2.8″ CMOS
• Lens: 2.7mm–13.5mm motorized varifocal lens
• Max. Frame Rate: 25/30fps @ 1080p
• Infrared Range: 30 meters (98 feet) with Smart IR
• WDR: 120dB Wide Dynamic Range
• Audio: Built-in microphone (two-way audio support)
• IR LEDs: Smart IR for adaptive illumination
• Power Supply: 12V DC ±30%, PoE (IEEE 802.3af)
• Weatherproof Rating: IP67
• Dimensions: 122 mm × 95.5 mm (4.8″ × 3.8″)
• Weight: 0.55 kg (1.2 lbs)

Applications

• Retail: Ideal for monitoring store entrances, aisles, and check-out areas, providing high-definition video in various lighting conditions.
• Commercial Buildings: Suitable for securing office spaces, parking lots, and entrances with clear footage and night-time surveillance.
• Public Spaces: Perfect for use in airports, train stations, or other public areas, where reliable surveillance is required around the clock.
• Industrial Sites: Effective for monitoring warehouses, factories, or storage areas, providing protection and monitoring across large environments.
